Internal khoom code: 103

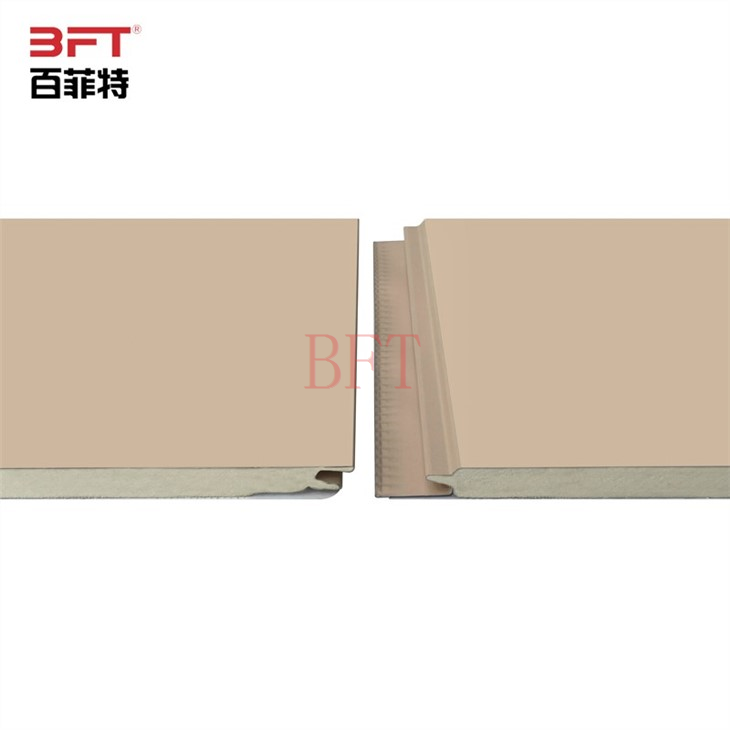

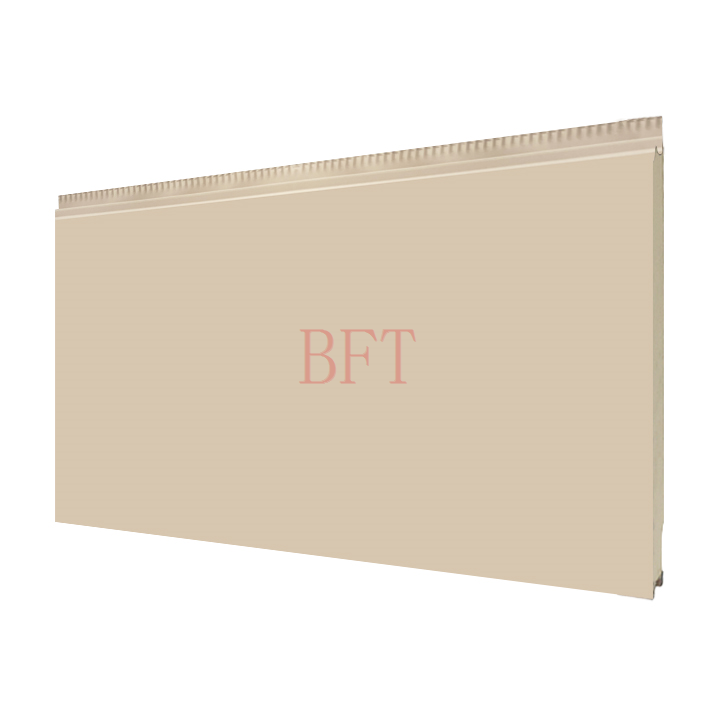

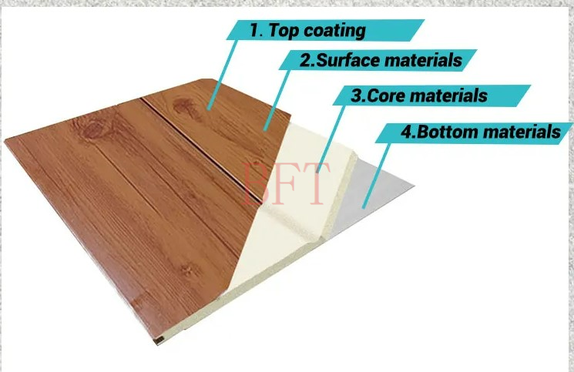

Product Description
1>Cov khoom siv saum npoo yog Al-Zn Alloy Coated steel ntawv
2>Cov khoom tseem ceeb ntawm txheej nruab nrab yog ib qho tshwj xeeb fireproof nyuaj high-density polyurethane ua npuas ncauj rwb thaiv tsev txheej,
3>Cov khoom siv hauv qab yog aluminium foil.
|
Khoom npe |
sab nrauv ua npuas ncauj rwb thaiv tsev panels
|
Daim ntawv pov thawj |
ISO9001, SGS |
|

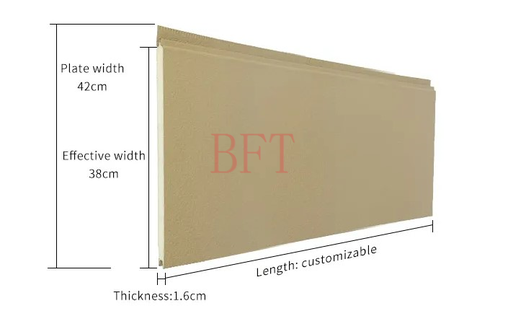

Thickness |
16 hli / 20mm |
Hluav taws kub tsis kam |
B1/B2 |
|
Dav |
kam rau ua |
Loj tolerance |
-/ ntxiv 2 mm |
|
Ntev |
2000mm ~ 6000mm |
Tensile daim ntawv cog lus muaj zog |
0.17MPA |
|
Nto hlau |
Galvalume, hom C |
Cua load tus nqi |
9 KPA |
|
Hlau alloy muaj pes tsawg leeg |
Aluminium um 55 feem pua, Zinc 43.5 feem pua, Silico thiab lwm yam.5 feem pua, ect. |
Pob |
10pcs / 8pcs 8pcs / thawv |
|
Hlau txheej |
HDP,>30 awm |
Pob Loj |
4010mm * 41mm * 170mm (10pcs / thawv) |
|
Cov khoom siv tseem ceeb |
Polyurethane, 40kg / m3 |
OEM |
Logo thiab vaj huam sib luag loj |
|
Kaw ntawm tes tus nqi |
90% ~ 95 feem pua |
Thawv load |
Qhov tuab |
|
Thicknthe ess ntawm cov khoom hauv qab |
0.026 hli |
Kev pab cuam tom qab muag |
kev cob qhia kev cob qhia, kev txhawb nqa online |
|
Vaj huam sib luag hnyav |
3.4 ~ 3.6kg / m2 |
Chaw nres nkoj |
QINGDAO |
|
R-VALUE |
0.55 m2*k/w |
Payme nt |
T/T,L/C |
|
Thaum tshav kub kub conductivity |
0.024 w/m*k(in theory) |
Hom |
BFT phab ntsa panels |
|
Qhov ntom |
40- 60 (kg/m3) |
Dimensional stability |
Tsawg dua lossis sib npaug li 1.5 feem pua |
|
Compressive zog |
200kph 270 (kpa) |
Chav kub |
-196 degree ntxiv rau 120 degree |
|
Kev nqus dej |
Tsawg dua lossis sib npaug li 3 feem pua |
Oxygen index |
Ntau dua lossis sib npaug li 26 feem pua |
PRODUCT Advantage

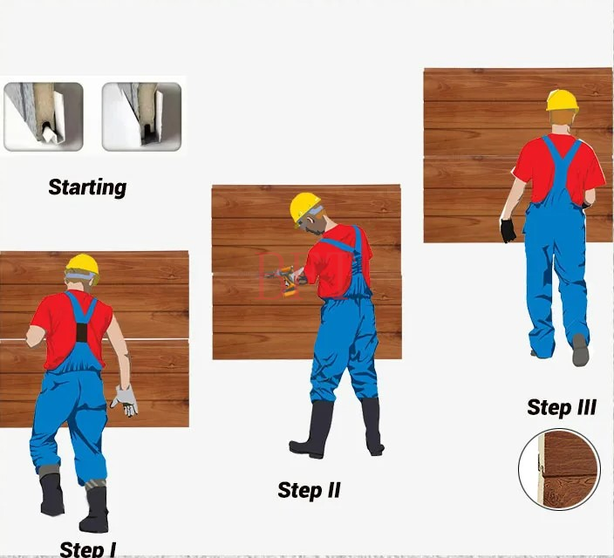

PRODUCT Installation

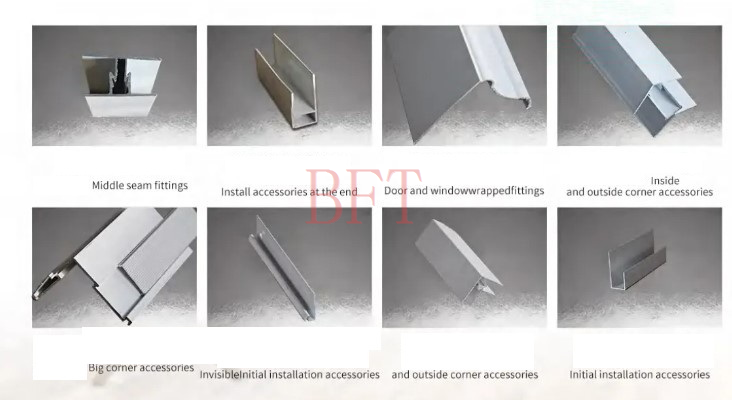

PRODUCT Accessory

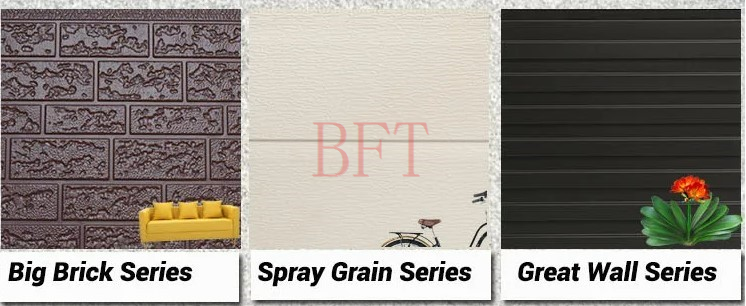

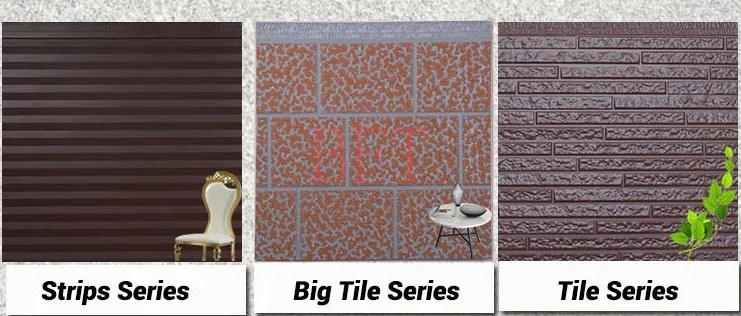

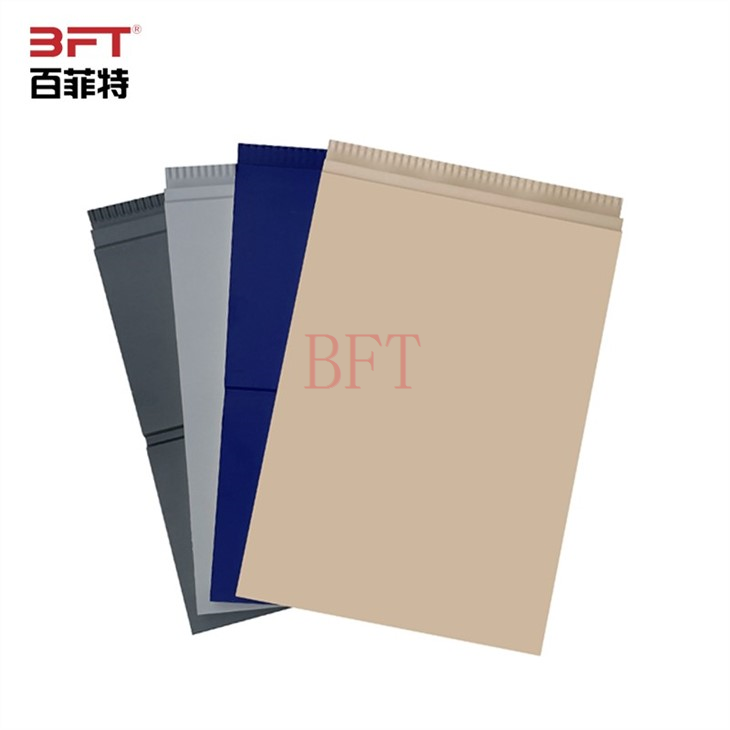

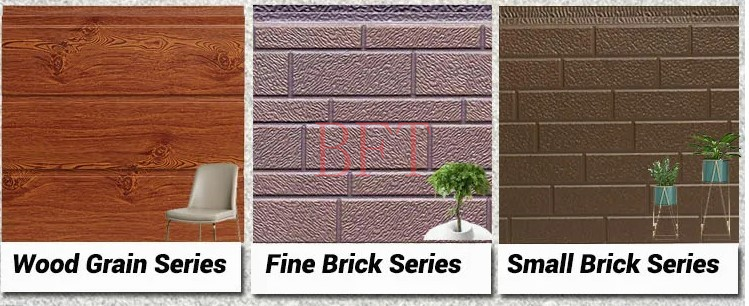

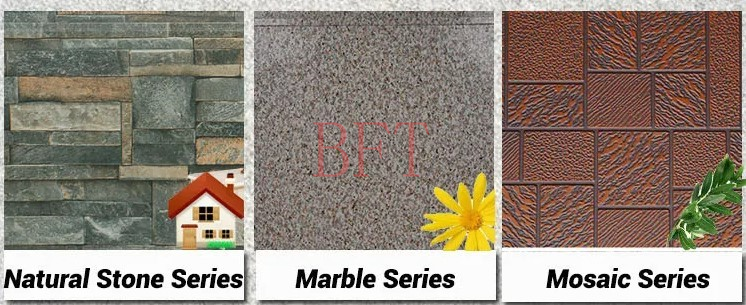

Xim Thiab Cov Qauv
Ntau tshaj 100 hom vaj huam sib luag rau kev xaiv

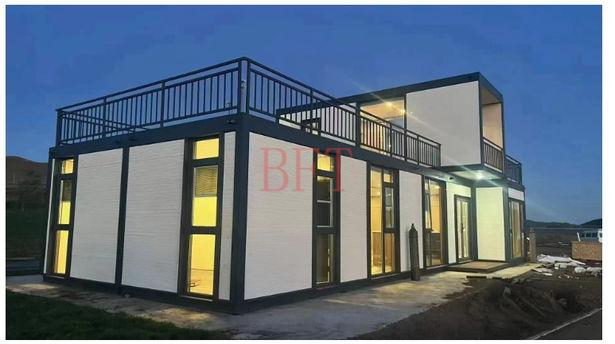

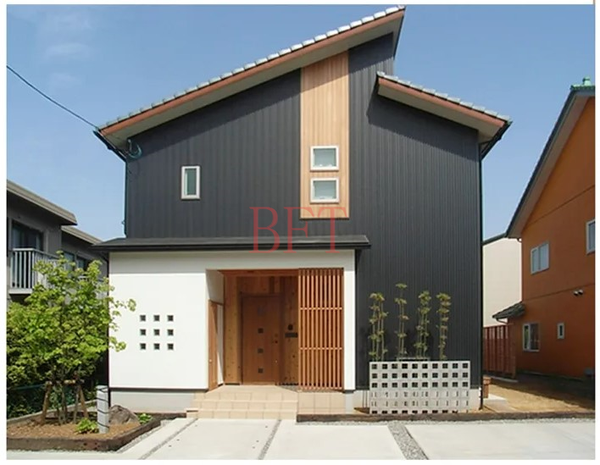

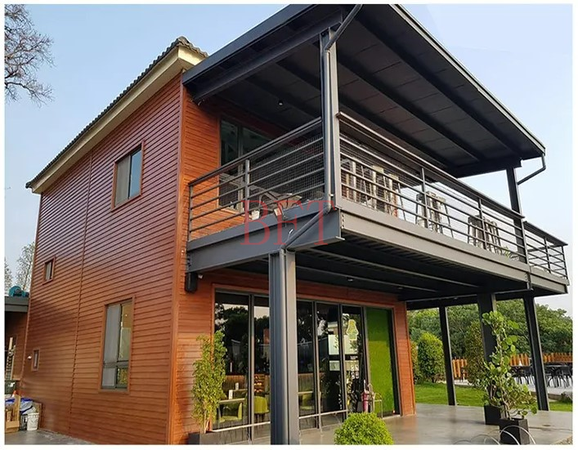

PROJECTS THIAB APPLICATION
Sab nrauv ua npuas ncauj rwb thaiv tsev panels tuaj yeem siv dav hauv kev tsim kho hauv nroog, chav tsev thiab chaw nyob, chaw ua haujlwm chav tsev villa vaj scenic me ntsis qub tsev reconstruction, guard posts, thiab ntau lwm yam engineering teb lub tsev cov ntaub ntawv tsis tsuas yog siv rau tshiab cib qhob vaj tse, thav duab, steel qauv, lub teeb lub cev chav tsev thiab lwm yam tsev tab sis kuj muaj feem xyuam rau kev kho kom zoo nkauj thiab lub zog-txuag transformation ntawm cov vaj tse uas twb muaj lawm raws li zoo raws li sab hauv tsev thiab sab nraum zoov kho kom zoo nkauj. Sab nrauv ua npuas ncauj rwb thaiv tsev vaj huam sib luag tau dhau los ua thawj qhov kev xaiv ntawm ntau thiab ntau phab ntsa thermal rwb thaiv tsev zoo nkauj cov ntaub ntawv hauv tsev.

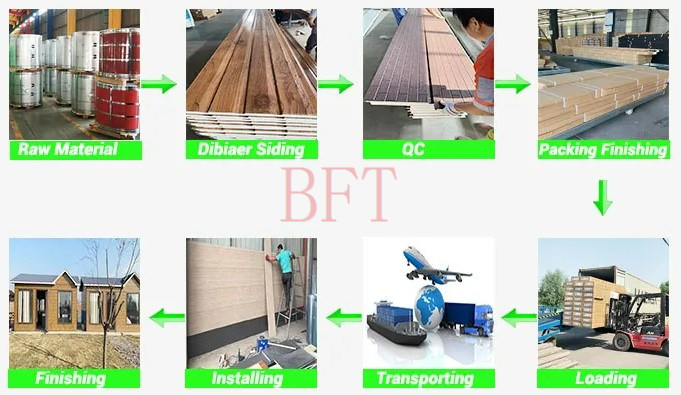

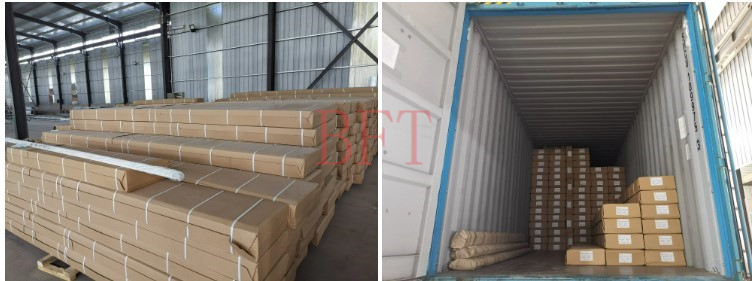

Packing & Shipping
Packing: Carton packing plus Ntim siv
Txog 3.5-3.7kg ib square meter.
(1) Board txee loj ntawm sab nrauv npuas rwb thaiv tsev panels:
Nws feem ntau yuav tsum yog 5.8m rau 20 feet txee,
Raws li qhov xav tau ntawm cov neeg siv khoom, tag nrho qhov ntev ntawm 40 ko taw txee yog tsawg dua 11.8 meters
(2) Cov ntaub ntawv thauj khoom:
Qhov loj thiab qhov tshwj xeeb ntawm 20 ko taw me txee yog li 5.898 × 2.352 × 2.385m, thiab qib sib dhos yog li 1300 (tsis suav qhov chaw seem)
40 ko taw loj txee (siab txee): 12.032 × 2.352 × 2.69M, txog 3300 tiaj tus (tsis suav qhov chaw seem)
FAQ
FAQ
Q: Koj puas yog lub tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog lub Hoobkas. Zoo siab txais tos tuaj xyuas peb lub tuam txhab. Cov khoom tseem ceeb yog PU sab nrauv ua npuas ncauj rwb thaiv tsev panels.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Feem ntau nws yog 5-10 hnub yog tias cov khoom muaj nyob hauv Tshuag. Los yog nws yog 10-15 hnub yog tias cov khoom tsis nyob hauv Tshuag. Nws yog raws li kom muaj nuj nqis.
Q: Koj puas muab cov qauv? Puas yog dawb lossis ntxiv?
A: Yog. Peb tuaj yeem muab cov qauv dawb (5 pcs). Tab sis tsis txhob them tus nqi thauj khoom.
Q: Koj puas muab kev pabcuam OEM?
A: Peb lees txais OEM xaj, suav nrog cov neeg siv khoom lub logo thiab cov ntawv lo.(Min order: 500 square meters)
Q Muaj pes tsawg txoj kev them nyiaj muaj?
Peb lees txais T / T, L / C, Paypal, Kev lag luam ruaj ntseg, thiab lwm yam
